Precision Components for Refrigeration & HVAC Systems
At Hyderabad Refcomp, we manufacture four core product categories that form the backbone of any reliable cooling system: Filter Driers, Strainers, Accumulators, and Condensers. Every component is engineered with precision, built with quality materials, and tested rigorously before dispatch.
Filter Driers
Product Overview

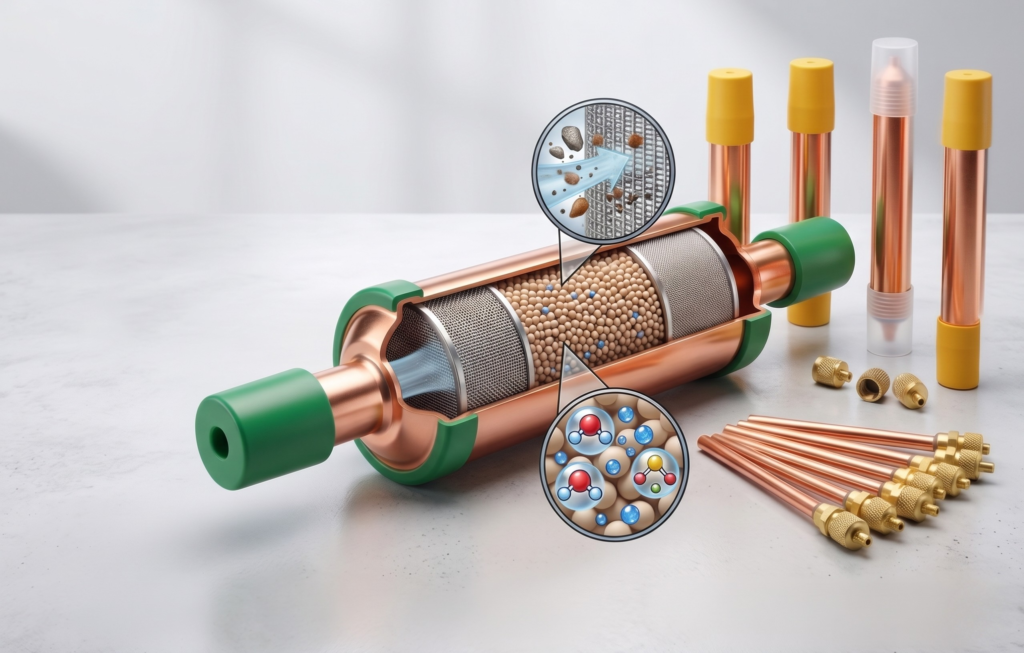

Filter driers are essential components in refrigeration and air conditioning systems. They perform two critical functions:
Filtration – Removing solid particles like metal shavings, dirt, and debris
Drying – Absorbing moisture and acid to prevent ice formation and chemical breakdown
A failed filter drier can lead to compressor burnout, expansion valve freezing, and complete system failure. Our filter driers are built to prevent exactly that.
Technical Specifications
| Parameter | Details |
|---|---|
| Body Material | Copper |
| Connections | Copper solder ends (standard), flare, threaded |
| Filter Media | 100% molecular sieve / silica gel (automatic filling) |
| Mesh Support | Stainless steel mesh (both ends) |
| Refrigerants | R22, R32, R410A, R290, R134a, R404A, R407C |
| Operating Pressure | Up to 700 PSI (depending on size) |
| Sizes Available | 3 cu in to 300+ cu in (custom available) |
Available Sizes (Popular)
| Size (cu in) | Connection (inch) | Typical Application |
|---|---|---|
| 3 | 1/4″ | Small ACs, refrigerators |
| 5 | 1/4″ or 3/8″ | 1-1.5 TR ACs |
| 8 | 3/8″ | 2 TR ACs |
| 16 | 3/8″ or 1/2″ | 3-4 TR systems |
| 30 | 1/2″ or 5/8″ | 5-7 TR commercial units |
| 50+ | Custom | Large cold storages, chillers |
Key Features
Automatic Silica Gel Filling – Consistent moisture absorption capacity in every unit
Double Mesh Protection – Prevents media migration into the system
100% Pressure Tested – No leaks, no weak welds
Vibro Finished Surface – Clean, smooth, rust-resistant exterior
Auto Powder Coated (optional) – Additional corrosion protection
Applications
| Industry | Use Case |
|---|---|
| Split & Window ACs | Liquid line moisture control |
| Cold Storages | Protection against acid formation |
| Refrigerators & Freezers | Extended compressor life |
| Heat Pumps | Year-round reliability |
| Automotive AC | Vibration-resistant design |
Strainers
Product Overview

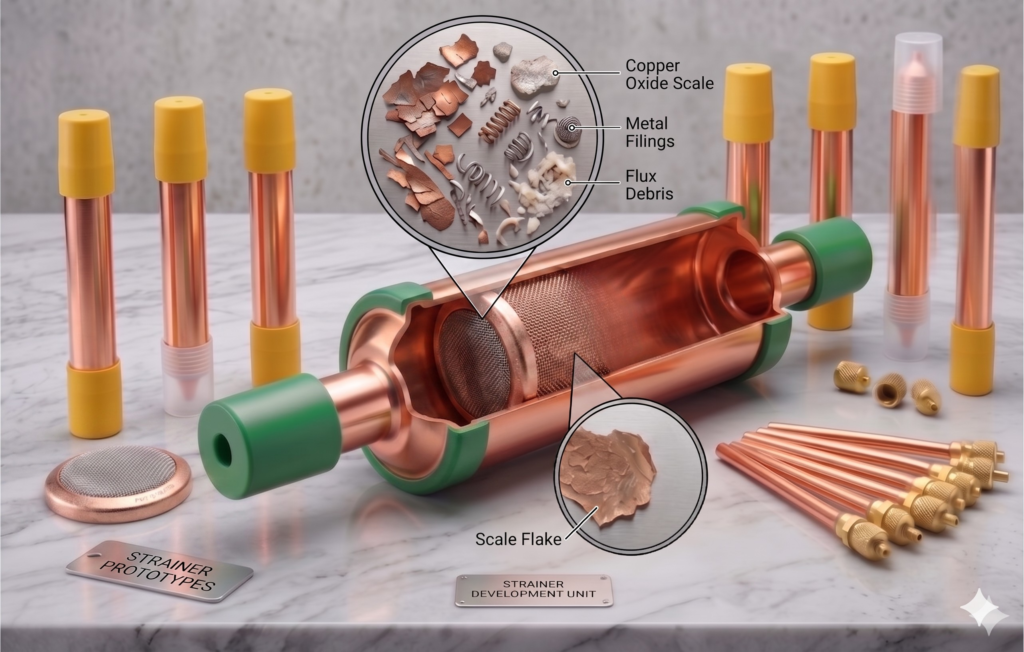

Strainers protect sensitive components like expansion valves, compressors, and capillary tubes from solid contaminants. Even small particles of brazing flux, metal shavings, or copper oxide can block or damage these components. Our strainers trap debris while allowing uninterrupted refrigerant flo
Technical Specifications
| Parameter | Details |
|---|---|
| Body Material | Copper |
| Mesh Material | Stainless Steel |
| Mesh Sizes | 30, 50, 80, 100 micron (custom available) |
| Connections | Solder, flare, threaded |
| Applications | Liquid line, suction line, oil return line |
| Temperature Range | -40°C to +120°C |
Available Mesh Sizes & Use Cases
| Mesh (Micron) | Approx. Mesh Count | Typical Use |
|---|---|---|
| 30 | Coarse | Large debris protection |
| 50 | Medium | General purpose |
| 80 | Fine | Capillary tube systems |
| 100 | Very Fine | Precision expansion valves |
Key Features
Precision CNC Wire Cutting – Clean, burr-free mesh edges
Strong Welding – No mesh dislodgement under flow pressure
Compact Design – Fits easily in tight system layouts
High Flow Capacity – Minimal pressure drop
Cleanable Options – Some models can be opened and cleaned
Applications
| Industry | Use Case |
|---|---|
| AC Systems | Before expansion valve |
| Refrigeration Units | Suction line protection |
| Chillers | Protects pump and valves |
| Heat Pumps | Reversing valve protection |
| Oil Separators | Oil return line straining |
Accumulators
Product Overview

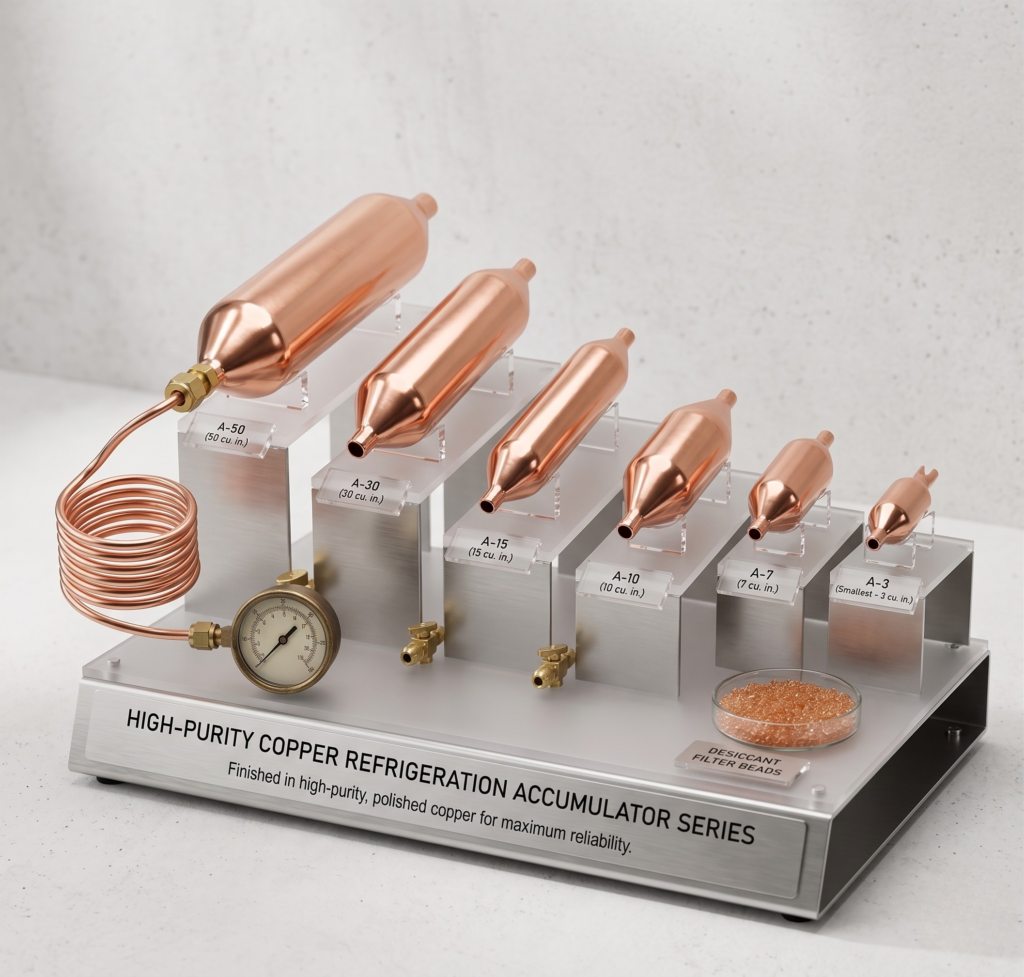

An accumulator is installed between the evaporator and the compressor. Its job is to prevent liquid refrigerant from entering the compressor. Liquid slugging can cause:
Bent or broken compressor valves
Damaged scroll plates or pistons
Complete compressor seizure
Our accumulators safely store excess liquid and release only vapor back to the compressor.
Technical Specifications
| Parameter | Details |
|---|---|
| Body Material | Copper |
| Connections | Copper solder ends (standard) |
| Internal Design | Inlet tube with metering orifice / J-tube |
| Options | With or without heat exchanger (suction/liquid) |
| Refrigerants | All standard HFC, HCFC, HC refrigerants |
| Burst Pressure | 4x operating pressure (tested) |
Popular Sizes
| Shell Diameter (inch) | Connection (inch) | Typical Capacity (TR) |
|---|---|---|
| 2″ | 1/4″ or 3/16″ | 0.5 – 1 |
| 2.5″ | 3/16″ or 1/2″ | 1 – 2 |
| 3″ | 1/2″ or 5/8″ | 2 – 4 |
| 4″ | 5/8″ or 3/4″ | 4 – 7 |
| 5″ + | Custom | 7+ |
Key Features
CNC Formed Shells – Consistent wall thickness and roundness
Precision Welding – No weak points under pressure cycling
Metering Orifice – Controlled liquid return to compressor
Corrosion Protection – Auto powder coated (steel bodies)
Heat Exchanger Option – Improves system efficiency
Applications
| Industry | Use Case |
|---|---|
| Heat Pumps | Frequent reverse cycle operation |
| Cold Storages | Variable load conditions |
| Refrigerated Trucks | Vibration and slope operation |
| Low-Temperature Freezers | Floodback risk applications |
| Multi-Evaporator Systems | Uneven load distribution |
Condensers
Product Overview
The condenser is where superheated refrigerant vapor releases heat to the surrounding air (or water) and condenses into liquid. A well-designed condenser is critical for system efficiency. Our air-cooled condensers are built for performance, durability, and corrosion resistance.
Technical Specifications
| Parameter | Details |
|---|---|
| Tube Material | Copper (seamless, internally grooved optional) |
| Fin Material | MS Copper Coated Tube |
| Tube Pattern | Staggered / Inline (as per design) |
| Fin Pitch | Customizable (standard: 2.0 – 2.5 mm) |
| Coating | Auto powder coated (frames & casing) |
| Refrigerants | All standard |
Customization Options
| Option | Details |
|---|---|
| Size | Any length, height, depth as per requirement |
| Fin Pitch | Tighter pitch for more surface area |
| Tube Diameter | 3/16″, 1/2″, or custom |
| Circuiting | Single or multiple circuits |
| Coating | Standard or marine-grade corrosion protection |
Key Features
CNC Tube Cutting & Bending – Precise, kink-free bends
Automatic Powder Coating – Uniform, rust-resistant finish
Heating Oven Cured – Long-lasting coating adhesion
Vibro Finished Components – Clean, smooth surfaces
Leak Tested – 100% under high-pressure nitrogen
Applications
| Industry | Use Case |
|---|---|
| Split & Window ACs | Outdoor heat rejection |
| Cold Storage Units | High ambient performance |
| Water Coolers & Dispensers | Compact designs |
| Medical Freezers | Reliable operation |
| Industrial Chillers | Continuous duty cycles |
